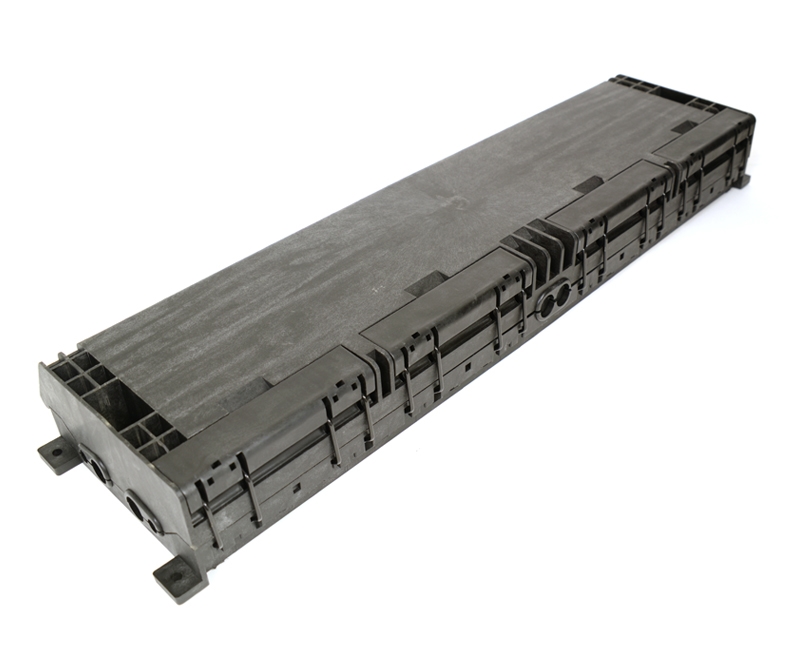

48 Fiber Outdoor Splice Enclosure - x1 Splice Tray Included - 8 Ports at 16mm
48 Fiber Outdoor Splice Enclosure - x1 Splice Tray Included - 8 Ports at 16mm - 643mm x 175mm x 76mm
Item No: HTB-132
MFG Part#: HTB-132
Horizontal Splice Enclosures are designed to protect fiber optic cable splicing and joints. They feature a seal that makes them both dust and weather resistant, this means that they ideal for outdoor use. They can be either aerial mounted or used in underground applications and tempatures ranging from -40°C to 85°C. Setup and installation is easy
Product Features
- U.V and Chemical Resistant
- May be used for Cut, Uncut and Taut Sheath Applications
- Dust and Waterproof design
- Ideal for Aerial and Underground applications
- Easy setup and installation
Product Specifications
| Length: | 643mm |
| Width: | 175mm |
| Height: | 76mm |
| Max Capacity of Fiber Splice: | 48 fibers |
| Port Capacity | 4 Ports each port for 1 cable with max 16mm
4 Ports each port for 1 cable with max 8mm
8 Ports each port for 1 cable with max 3mm or 3x2 drop cable |
