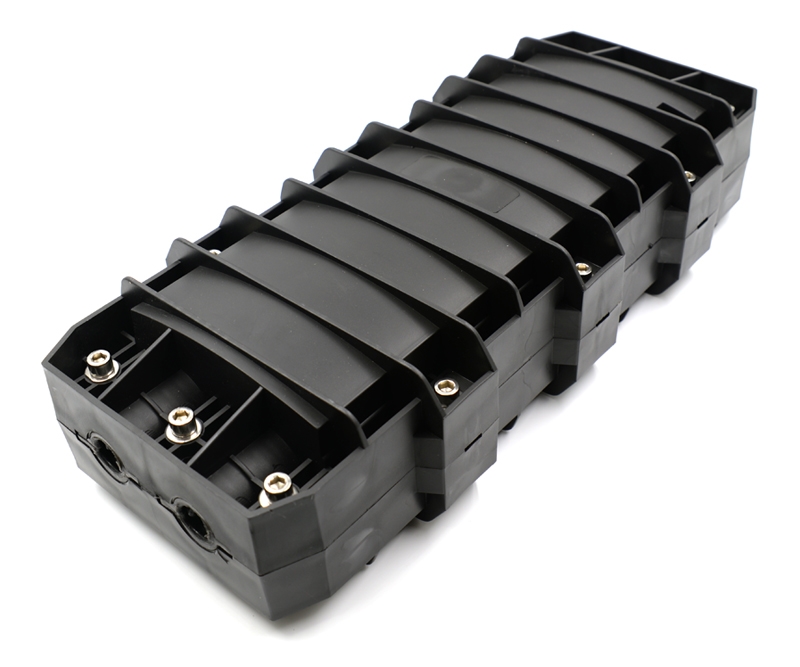

96 Fiber Outdoor Splice Enclosure - x4 Splice Trays Included - 4 Ports at 22mm
96 Fiber Outdoor Splice Enclosure - x4 Splice Trays Included - 4 Ports at 22mm (432mm x 186mm x 100mm)
Item No: HTB-106
MFG Part#: HTB-106
Horizontal Splice Enclosures are designed to protect fiber optic cable splicing and joints. They feature a seal that makes them both dust and weather resistant, this means that they ideal for outdoor use. They can be either aerial mounted or used in underground applications and tempatures ranging from -40°C to 85°C. Setup and installation is easy
Product Features
- U.V and Chemical Resistant
- May be used for Cut, Uncut and Taut Sheath Applications
- Dust and Waterproof design
- Ideal for Aerial and Underground applications
- Easy setup and installation
Product Specifications
| Length: | 432mm |
| Width: | 186mm |
| Height: | 100mm |
| Max Capacity of Fiber Splice: | 96 fibers |
| Splice Trays: | Max 4 Trays (Each tray for 24 splices) |
| Port Capacity | 4 Ports each port for 1 cable with max 22mm |
