Fiber Optic Field Cleaver

FOC-SS

Fiber Optic Cleaver

• Designed for fiber cleaving applications that include field termination of fiber connectors and mechanical splices as well as laboratory applications
• Small, lightweight and easy to use
• Features a graduated leaf spring scale, which allows cleave lengths of 2.0 mm to 20.0 mm
• The “Score and Snap” leaf spring function is easy, fast and is the preferred method by many fiber installers
• Produces a precise cleave endface angle of less than 2 degrees
• Supplied with a standard carbide cleaving blade capable of over 6,000 consistent cleaves
• Cleaving tool is designed for single mode and multimode fiber with cladding O.D. diameter of 125 micron with no operator tool adjustments

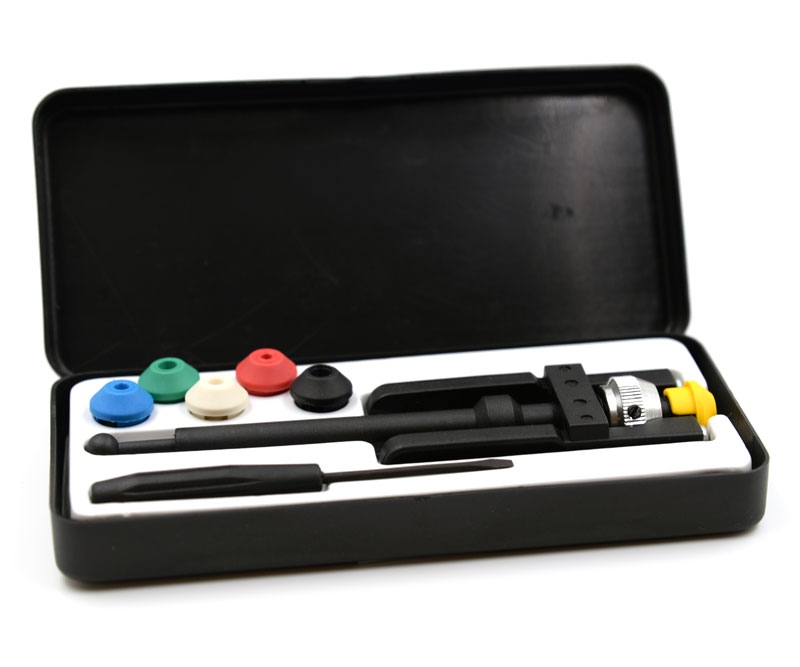

• Cleaver and instructions come in a 2.12 oz (60g) hard plastic case that measures 5.38 x 3.38 x 1.13 in. (137 x 86 x 29 mm)
• Cleaver Dimension: 4.88 x 0.79 x 1.57 in. (124 x 20 x 40 mm)
• Weight: 2.12 oz (60g)
• Fiber Optic Cleaver - Part No.: 46490
• Leaf Spring Replacement - Part No.: 46492
• Carbide Blade Replacement - Bladelife scores – 6,000* Part No.: 46491
• Diamond Blade Replaceent - Bladelife scores – 10,000* Part No.: 46493
• Made in the U.S.A.
