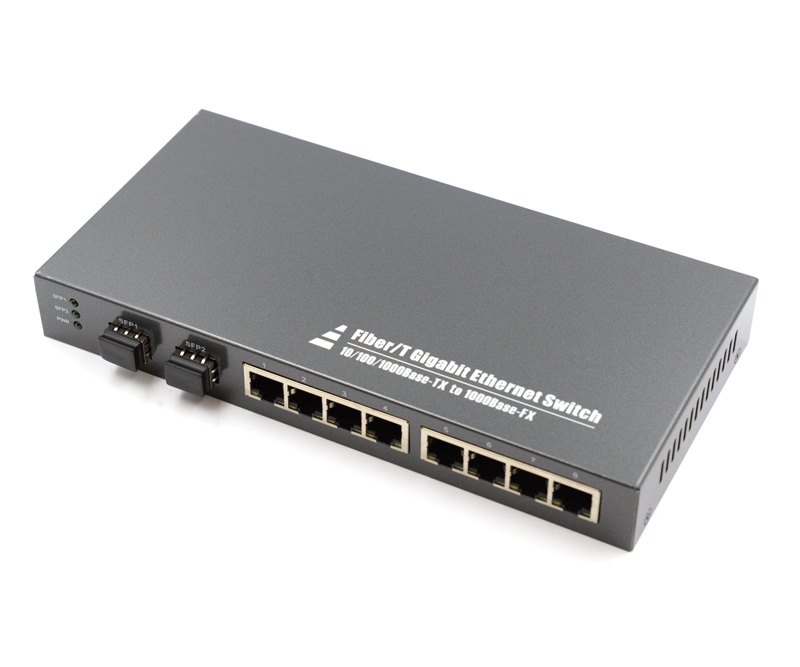

Interface: | - 8 x Ethernet port (RJ45) 10/100/1000Base-Tx
- 2 x Optical port (SFP) 1000Base-Fx
|
Optical Ports: | - Available for 1310nm and 1550nm Single mode, 850nm Multimode
- Transfer Distance: up to 120km
- Connectors: SFP
- Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5/125μm on multi-mode fiber
|
Ethernet Ports: | - Cable: Cat 5/5e/6 UTP cable
- Available speed: force 10Mbps, force 100Mbps , force 1000Mbps and auto-detective 10/100/1000Mbps. Full-Duplex and Half-Duplex auto-negotiation
- Connectors: RJ-45 Connector; MDI/MDI-X connection autosensing
|
Standards: | - EEE802.3 (10Base-T)
- IEEE802.3u (100Base-TX/FX)
- IEEE802.3ab (1000Base-T)
- IEEE802.3z (1000Base-SX/LX/CX/T)
- IEEE802.3x (Flow control)
|
LED Indicators: | Power Status, FX Link/Act, TX Link/Act |
Switch Properties: | - MAC Table: 16K
- Packet Buffer: 2Mbit
- Switching Delay: <5μs
|
Power Requirements: | 5V DC, External AC to DC adapter |
Housing: | Metal Enclosure |
Width: | 214 mm |
Height: | 28 mm |
Depth: | 104 mm |
Weight: | 0.6 kg |
Environmental Limits: | - Operating Temperature: -10°C to 70°C
- Storage Temperature: -20°C to 70°C
- Operating Humidity: 10% to 90% RH (non-condensing)
- Storage Humidity: 5% to 90% RH (non-condensing)
|
