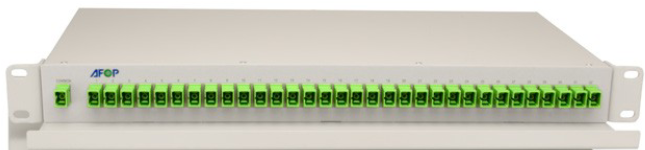

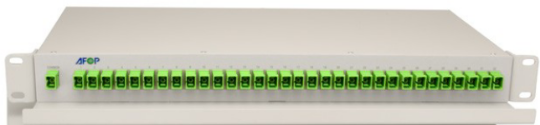

Corning introduces a new family of high performance PLC
Splitter (19-in Rack Mount) Modules for today’s high-port
count applications that demand the best performance
and the highest reliability under the most adverse of
environments. Corning’s PLC Splitter Modules deliver on all
these requirements. The PLC Modules feature low insertion
loss, low polarization dependent loss, and high port
uniformity. The Splitter Modules are available in 8-, 16-,
32- and 64-channel or two (1x32) configurations with SC or
LC connector. Our OEM-friendly packaging provides the
flexibility to meet the broadest design requirements.
Specifications
- Parameters 1x8 Port 1x16 Port 1x32Port 1x64Port
- Maximum Maximum Maximum Maximum
- Operating Wavelength λc 1260-1650 nm
- Insertion Loss 11.5 dB 14.7 dB 18.3 dB 21 dB
- Insertion Loss Uniformity 1.2 dB 1.7 dB 2.2 dB 2.5 dB
- Polarization Dependent Loss 0.3 dB 0.4 dB 0.45 dB 0.45 dB
- Directivity > 55 dB
- Return Loss > 50 dB
- Maximum Optical Power 300 MW
- Operating Temperature - 5°C to +65°C
- Storage Temperature - 40°C to +85°C
- Shipping Package
- Packaging Dimensions Fiber Type
- Standard 1U 19-in Rack Mount Fiber Type: Corning® SMF-28e®, 900 μm
