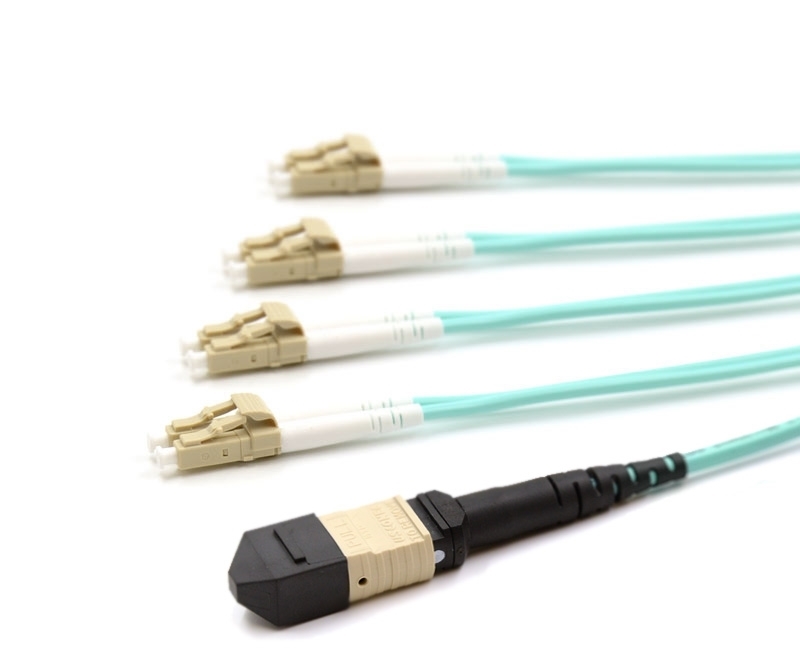

8 Fiber QSFP Fiber Optic Cable Assembly - (x1) MTP/UPC Standard Female to (x4) LC/UPC Duplex Connectors - Multimode 50/125µm OM3 Microdistribution Aqua Plenum Rated Jacket - 1 Meters in Total Length
8 Fiber QSFP Fiber Optic Cable Assembly - (x1) 12 Fiber MTP/UPC Standard Female (Center 4 Fibers - Not Populated) to (x4) LC/UPC Duplex Connectors - Multimode 50/125µm OM3 Microdistribution Aqua Plenum Rated Jacket - 1 Meters in Total Length - QSFP Pinout (1-12, 2-11, 3-10, 4-9)
Item No: MPO-QSFP-OM3-8LC-1M
MFG Part#: MPO-QSFP-OM3-8LC-1M
This Multimode MTP to LC/UPC Fanout Cable uses a Corning MMF Multimode 50/125 fiber and features a Aqua, Plenum Jacket (OFNP). The fanout side has 4 LC/UPC duplex connectors and is numbered in accordance with the corresponding fiber position in the MTP connector.
Product Features
- Connector A: Corning MTP, Female (No Pins)
- Connector B: LC/UPC
- 8 Fibers
- Cable is 3mm Round to 2mm on the Breakout side
- 0.5 Meter Breakout Length (20 Inches)
- Plenum Rated Jacket (OFNP)
