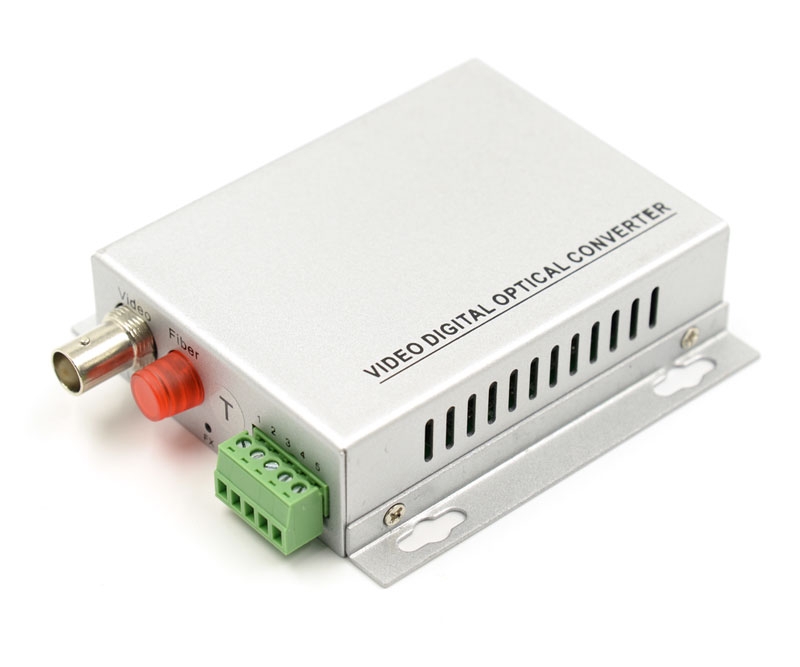

1 Channel Video Over Fiber Optic Converter Digital Converter with Audio

Product Description

Our Standard video transmitter/Audio/data transceiver and video receiver/Audio/data transceiver series utilizes uncompressed digital encoding and decoding for high-quality video transmission. These environmentally hardened units provide transmission of 1 independent video channel, over one single-mode or multimode optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The product is widely used in the field of CCTV, video surveillance, and national defense. N.B. Sold In Pairs

Product Features

    Card type or independent structure, which is applied to centralized management 2.5U chassis
    8/10-bit digital code and non-compression type video transmission
    Supports any high-resolution video signal
    5Hz-10MHz video channel
    Compatible PAL, NTSC and SECAM video system
    With APC circuit, constant input optical power and large dynamic range
    Power supply and other parameter state indication, which can monitor the operation of system
    Industry-grade design and modularization design make the equipment reliable and flexible
    Can automatically restore the fuse of power supply
    Full built-in power supply and the appearance design of shell is unique
    Internal power dissipation of power supply: 2.6W (Input: AC 140~260V)

Product Specifications

Video I/O Impedance:     BNC 75Ω nonbalanced interface
Video I/O Voltage:     Typical Peak -1Vpp.
Video Bandwidth:     8MHZ
Video Digital Bid Width:     8/10 bits
Differential Gain:     <1%
Differential Phase:     <1%
Field Tilt:     <0.5%
SNR:     >65dB
Connectors:     BNC
